Resideo (Honeywell) Q345A1313 Intermittent Pilot Burner Natural Gas BCR-18 Single Tip 1/4

The Resideo (formerly Honeywell) Q345A1313 is an intermittent pilot burner with a single-tip design and a left-facing tip, used for natural gas ignition in industrial and commercial gas furnace systems. It combines a pilot burner with a ceramic-insulated Kanthal flame rod/spark igniter and includes a mounting bracket, ground strap, and a BCR-18 orifice. This non-primary aerated assembly provides pilot flame ignition and sensing, ensuring reliable ignition of the main burner in systems that use modules like the S86 or S860.

Key Features and Specifications

Application: Intermittent pilot systems for industrial and commercial gas heating applications.

Function: Provides pilot flame ignition and flame sensing.

Type: Combination pilot burner and ignitor.

Fuel Type: Natural gas.

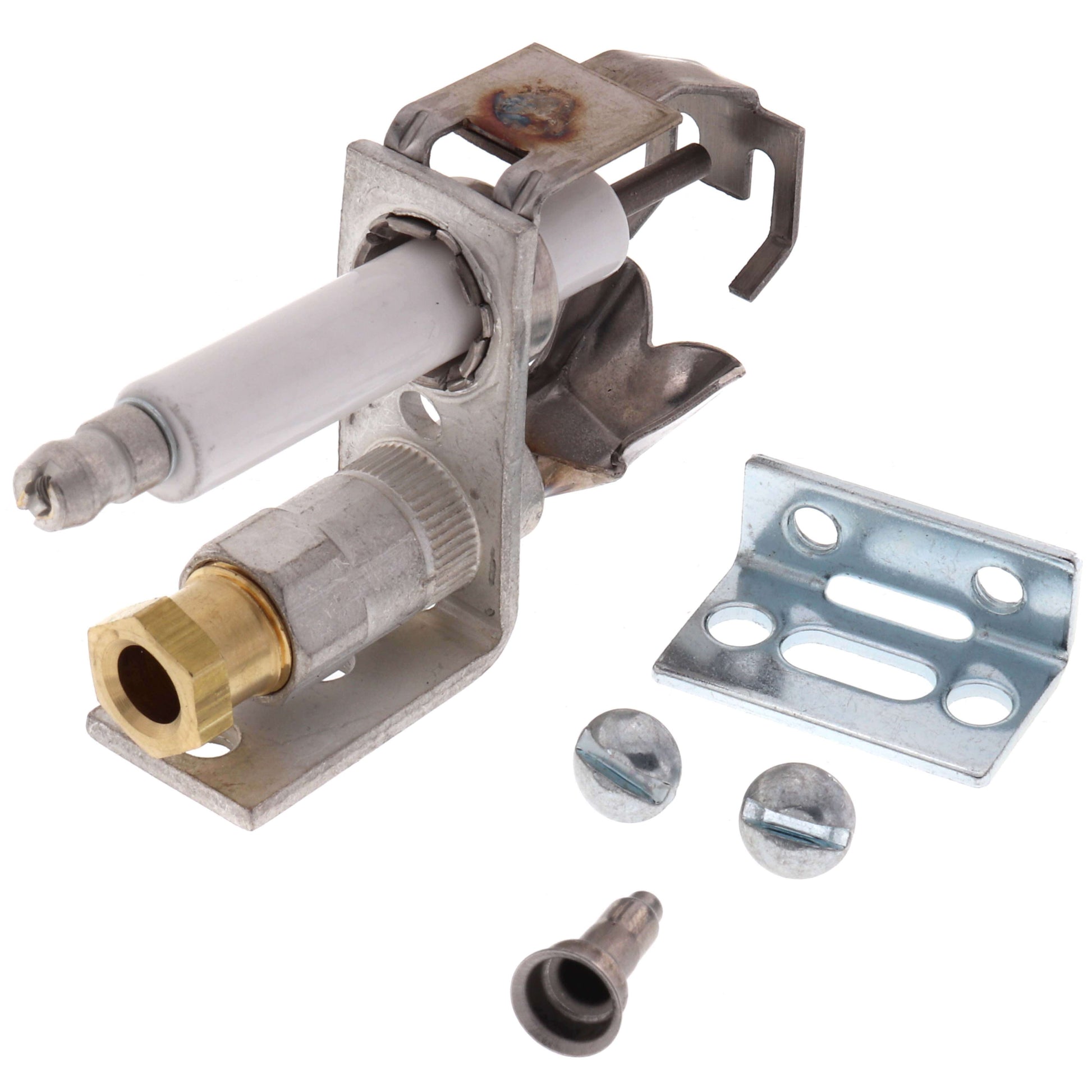

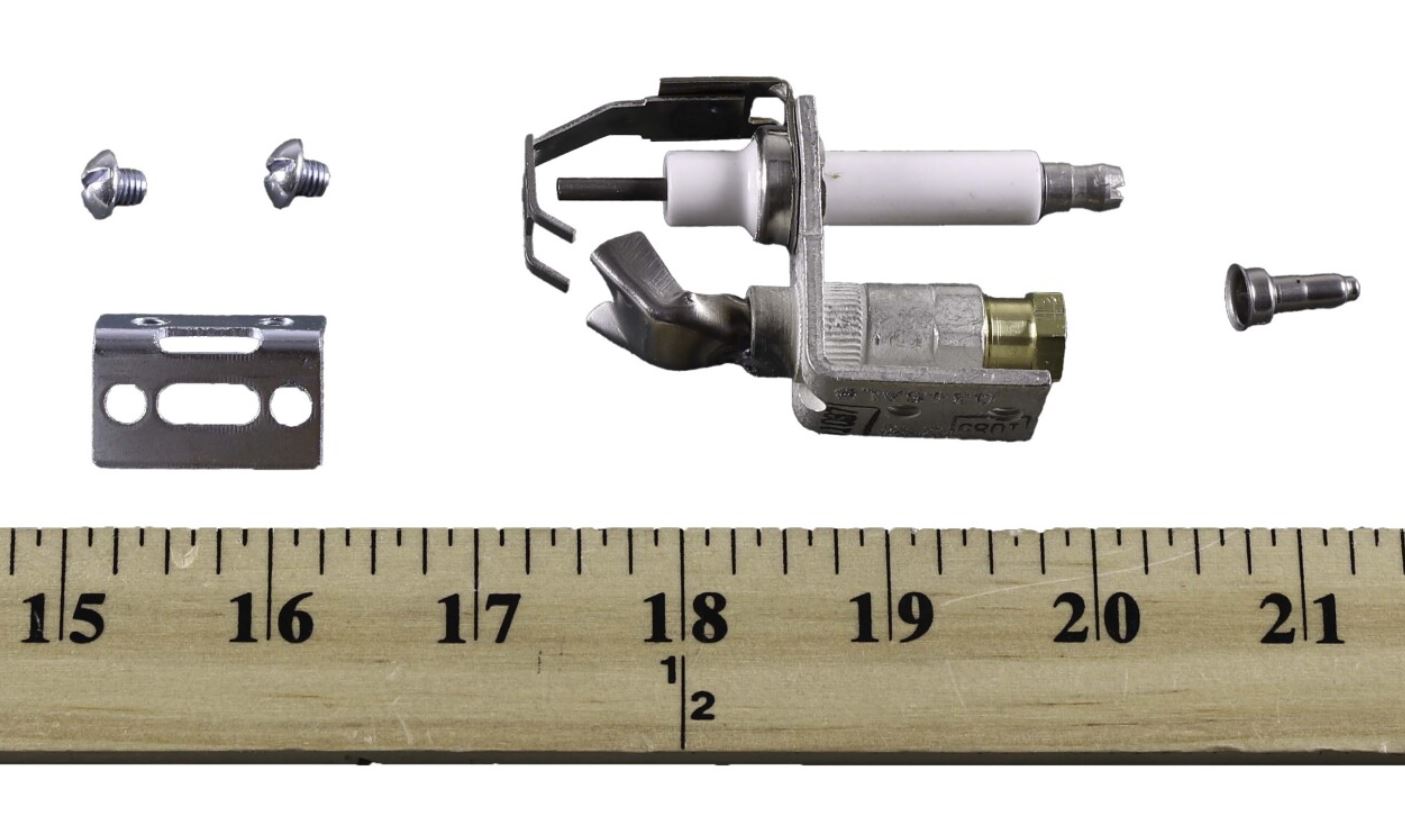

Components: Includes the pilot burner, bracket, ceramic-insulated Kanthal flame rod/spark igniter, and ground strap.

Orifice: Features a BCR-18 orifice.

Tip Style: Single-tip with a left-facing front tip.

Aeration: Non-primary aerated design.

Mounting: Equipped with a "B" style mounting bracket, with an included bracket to convert it to an "A" bracket if needed.

Connection: Has a 1/4" compression fitting for the gas supply.

Approvals: UL Listed.

The Q345A1313 is compatible with the following Resideo/Honeywell ignition control modules:

S86

S860

S8610

S8670
