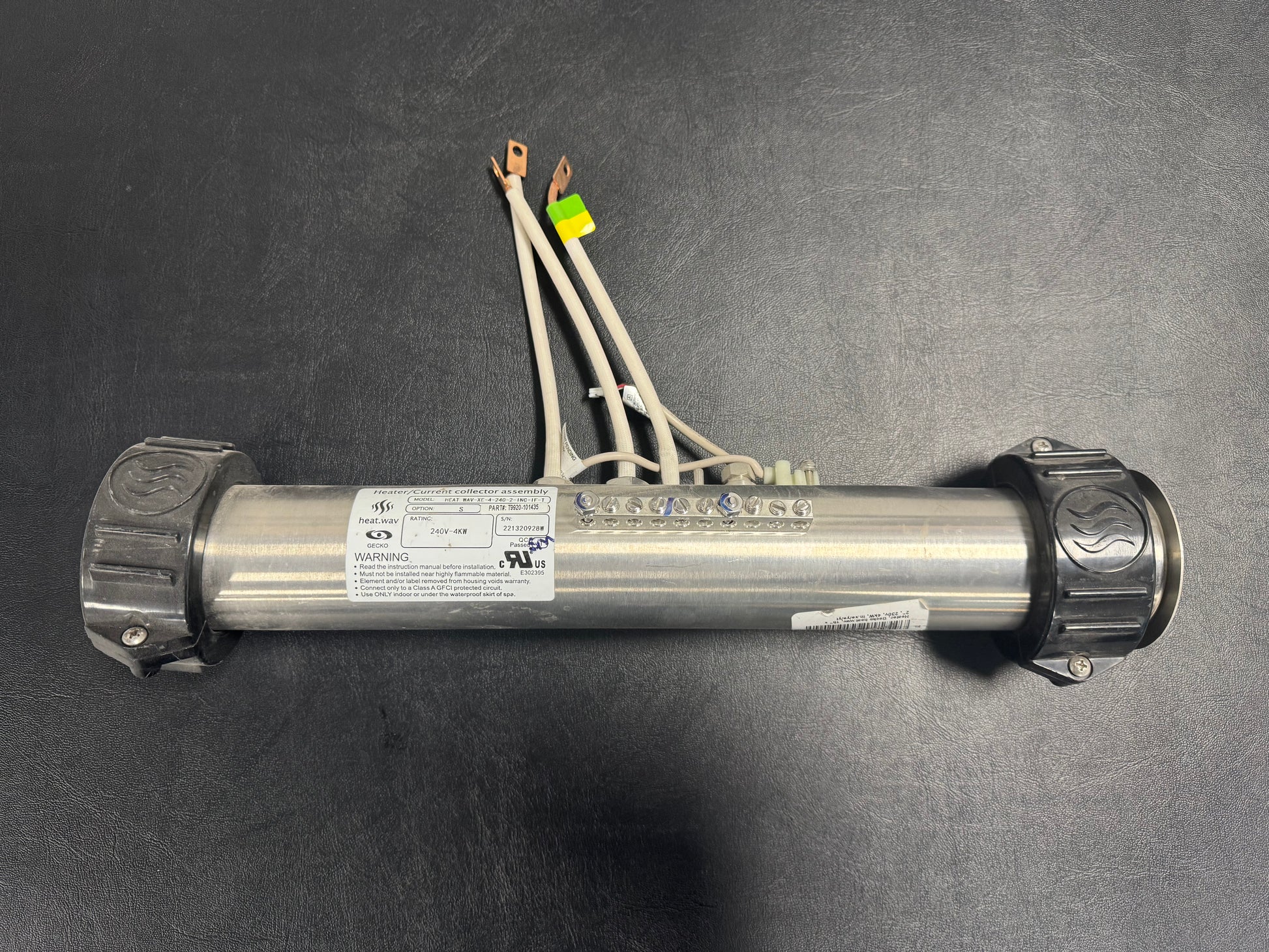

Gecko Heat.Wav In.XE Heater 4.0kw

The Gecko Alliance Heat.Wav T9920-101435 (also known as 9920-101435) is a high-performance flow-through spa heater assembly designed primarily for use with Gecko in.xe, in.ye, and in.yt control systems. It is a versatile component widely used by brands such as Emerald Spas, Great Lakes, Polynesian, and Dynasty Spas.

Key Product Specifications:

• Heating Power: Typically rated at 4.0 kW when operated at 230V/240V.
• Voltage Versatility: While preset for 230V, it can be easily converted to 115V/1.0 kW by switching a cable connection port.
• Dimensions: The heater tube length is 15 inches between unions, with a standard 2-inch diameter housing.
• Connections: Includes 2-inch unions, gaskets, and plumbing tailpieces for straightforward installation.

Features & Technology:

• In.Flo Dry-Fire Protection: This integrated safety feature ensures the heater does not operate without water, protecting the internal components from damage.
• No Pressure Switch: Unlike older designs, this model does not require an external pressure switch, reducing potential failure points.
• Integrated Sensors: Comes equipped with a pre-installed flow sensor and temperature probe.
• Durable Construction: Features a stainless steel housing and an Incoloy heating element for corrosion resistance and longevity.
