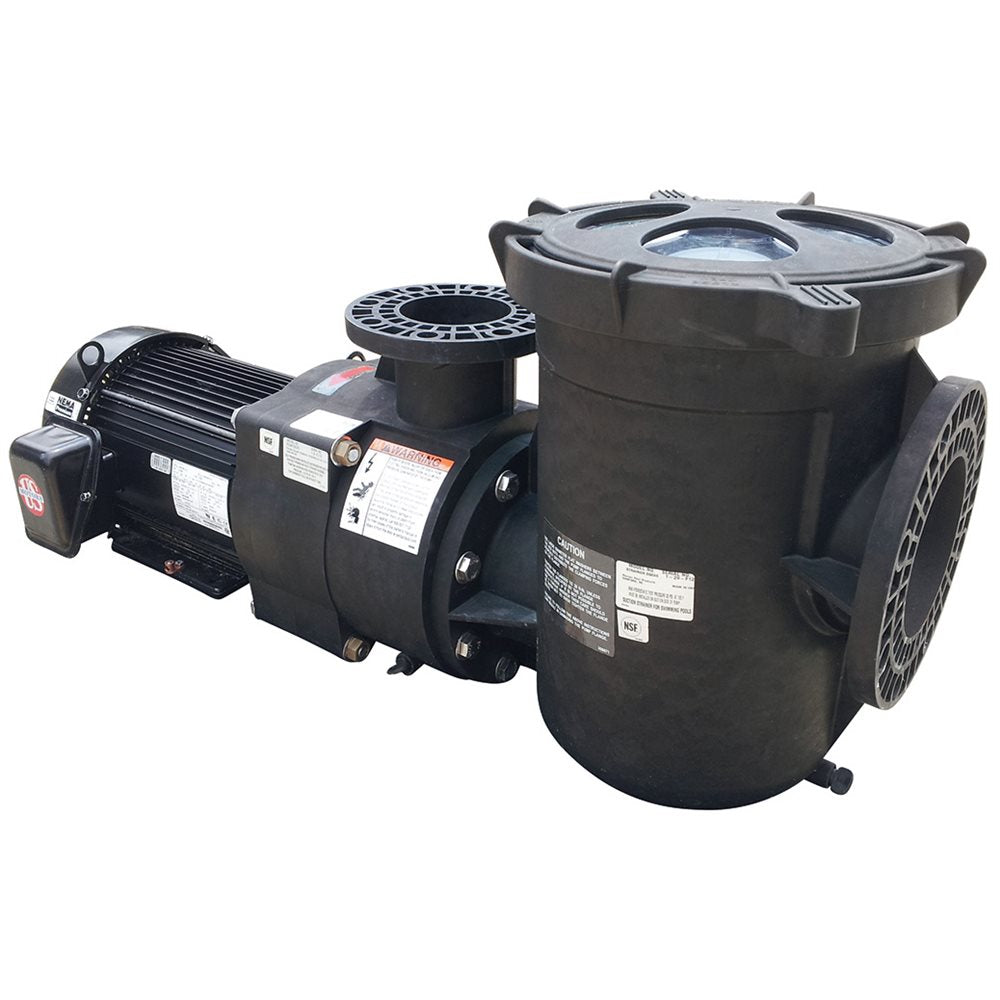

Pentair EQ Series pump eqkt1000 w/pot 10hp 208-230/460v 3ph tefc

The new EQ Series 3-phase pool pumps with TEFC motors are a true commercial-duty swimming pool pump. The TEFC (Totally Enclosed Fan-Cooled) motor is much more robust and corrosion proof than standard ODP (Open Drip Proof) motors. This commercial-duty motor construction does not allow ambient air to enter the motor; preventing corrosion from the inside out. The motor design features heavy-duty sealed bearings and an ultra-strong aluminum fan for superior cooling; along with Class F insulation for compatibility with Pentair Commercial Aquatics' Acu-Drive™ Variable Frequency Drives. Featuring ratings offering flow capabilities in excess of 800gpm, EQ Series 3-phase TEFC pool pumps are an ideal choice for many continuous-duty commercial installations, especially those prone to coastal elements, harsh environments, and "up-time critical" applications.

Features

• NEMA Rated Premium Grade Efficiency Motors

• Commercial grade, noncorrosive Plastic Parts for durability and long life

• Cam and Ramp™ See-Through Lid

• Self-priming with Hair and Lint Strainer

• Drop-in replacement for C Series® and CSP Series™ Pumps

• 3-phase models compatible with Acu Drive™ XS VF Drive

• Light weight

• Waterfall models great for low head, high flow applications
