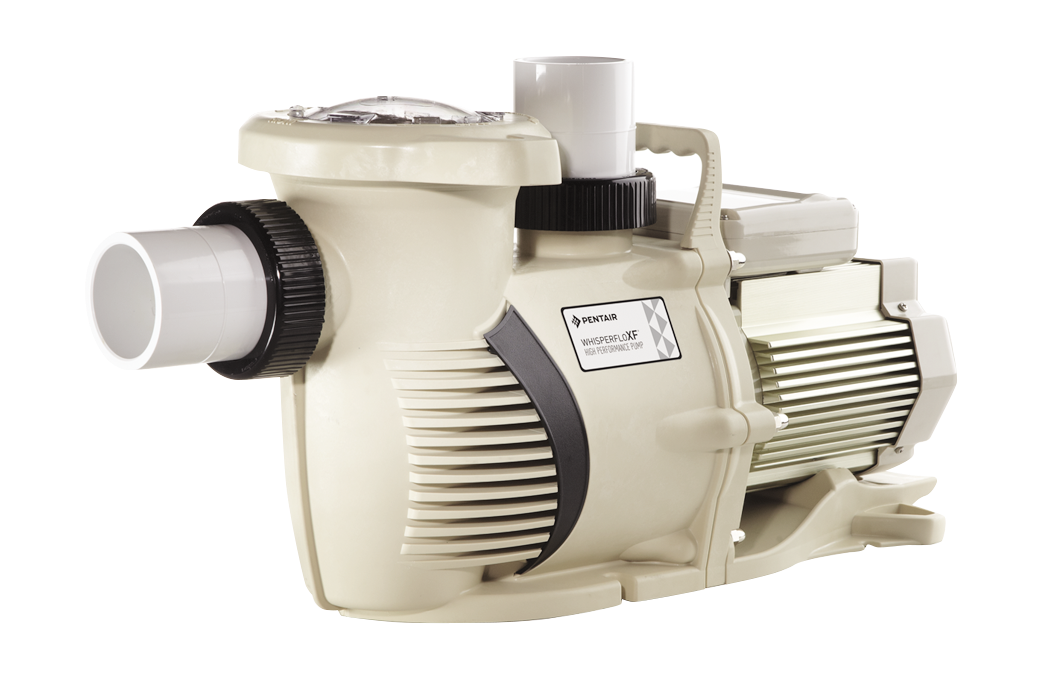

PMP XFET-20 5HP ALMD TEFC 208-230V 1PH

The 022034 is a Pentair WhisperFloXF XFET-20 High Performance Pool Pump, featuring a super-duty, Totally Enclosed Fan Cooled (TEFC) motor. This single-speed pump is designed for demanding residential and light commercial in-ground pool and spa applications.

Key Features and Specifications:

• Manufacturer: Pentair
• Model: WhisperFloXF XFET-20
• Horsepower (HP): 5 HP
• Voltage: 208-230V
• Phase: Single Phase (1PH)
• Motor Type: Totally Enclosed Fan Cooled (TEFC) - "Super-Duty"
• Maximum Flow Rate: 190 gallons per minute (GPM)
• Amperage (Full Load Amps): 20.0 Amps (at 208V) / 18.8 Amps (at 230V)
• Plumbing Connection (Port Size NPT): 2.5 inches or 3 inches (tool-free union connectors included)

Description:

This pump is engineered for durability and quiet operation. The TEFC motor design provides robust protection against harsh environments, making it a reliable choice for coastal areas or installations where downtime is critical. Its hydraulic design minimizes turbulence for enhanced efficiency and faster priming.

The WhisperFloXF is a direct drop-in replacement for all older WhisperFlo models, simplifying upgrades. It features a large-capacity strainer basket with a clear lid for easy inspection and an ergonomic lock ring for easy access.
