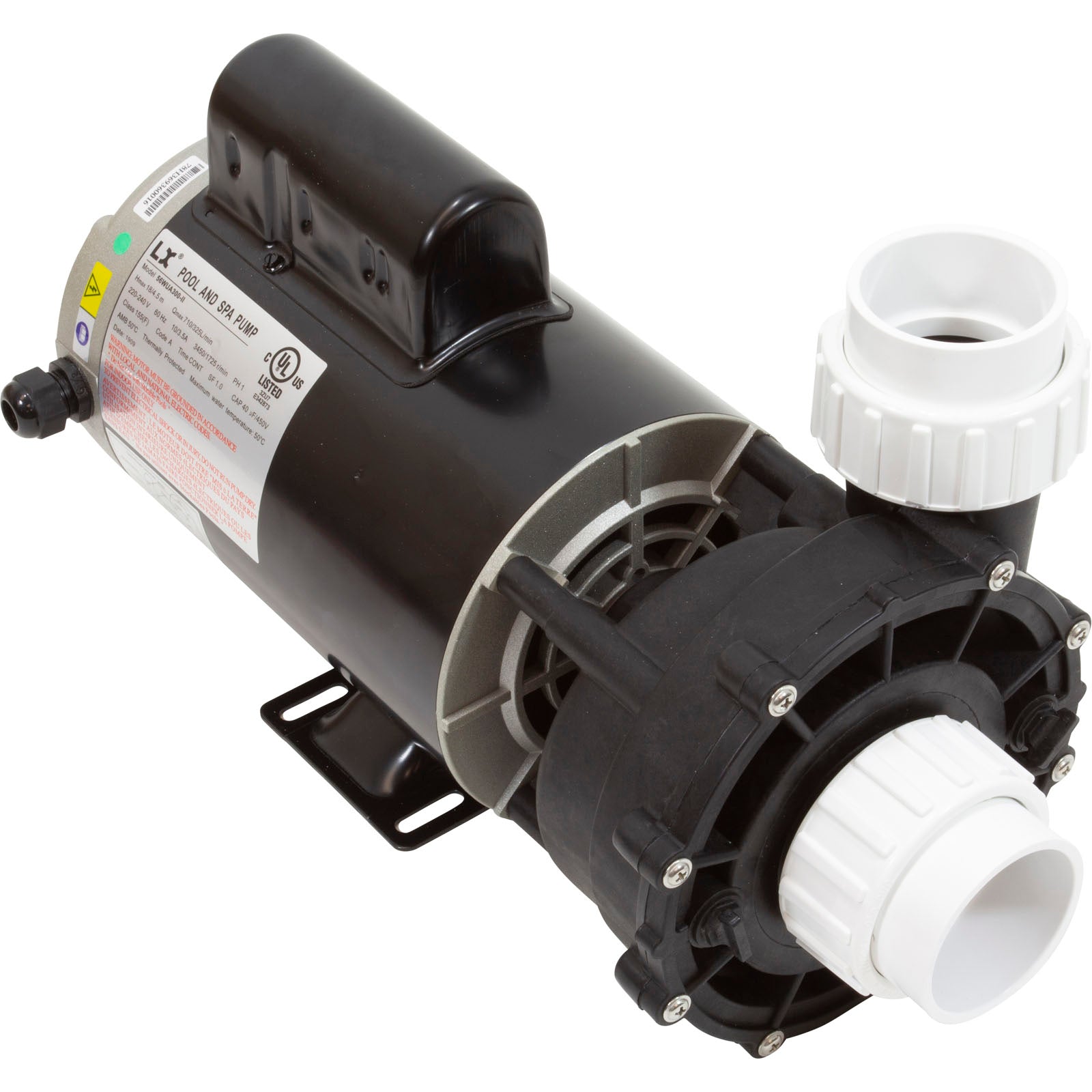

Pump, LX 56WUA, 3.0hp, 230v, 1-Spd, 56Fr, 2", SD

The 34-343-1042 is a powerful 3.0 HP, single-speed replacement spa pump manufactured by Lingxiao (LX) Pump under the model number 56WUA300-I. It is primarily designed as a direct replacement for Aqua Flo XP2e and Waterway Executive 56-frame pumps.

Technical Specifications:

According to manufacturer and retailer data from Leslie's Pool Supplies and Inyo Pool Products:

• Horsepower: 3.0 HP.
• Voltage: 230V.
• Amperage: 10.0 Amps.
• Speed: Single-speed (1-Spd).
• Frame Size: 56 Frame Thru-Bolt.
• Flow Rate: Up to 188 GPM.
• Plumbing Connections: 2" intake and 2" discharge (actual thread diameter is approximately 3.1" OD).
• Dimensions: 16-7/16" L x 8-3/4" W x 8-7/8" H.

Key Features:

• Side Discharge (SD): The pump features a side discharge orientation that can be rotated in 90-degree increments (3, 6, 9, or 12 o'clock) by loosening the motor's thru-bolts.
• High-Quality Components: It utilizes high-quality copper motor windings and anti-creep bearings for quieter, smoother operation.
• Ready for Installation: Typically includes two 2" unions for plumbing connection, though the power cord is often sold separately.
• Drain Plugs: Conveniently located at the 3, 6, and 9 o'clock positions for easy winterizing and maintenance.

Popular Replacement Use Cases:

This pump is a frequently chosen alternative for several major brands:

• Aqua Flo: Replaces XP2e series (e.g., part numbers 390593, 39577-03).
• Waterway: Replaces Executive 56-frame single-speed models.
• Compatible Systems: Often found in Sundance Spas and Jacuzzi Spas systems requiring a 56-frame, 230V single-speed configuration.

Note: When replacing your existing pump, verify that the amperage on your old motor nameplate closely matches the 10.0A rating of this unit to ensure electrical compatibility.
