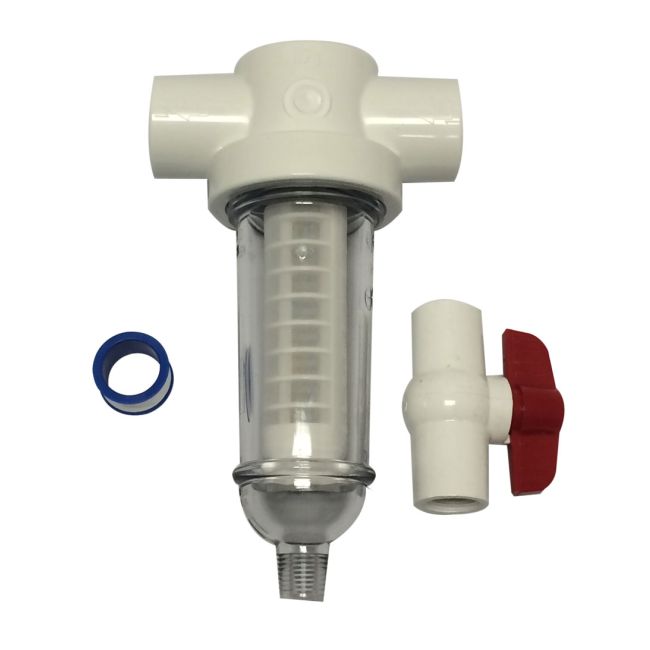

Rusco 1in Inlet Filter

The Rusco filter with part number 9500000-1 is a 1" standard spin-down sediment filter system. It is designed to remove various types of sediment, such as sand, shale, and pipe scale, using a reusable filter screen and centrifugal force.

The main difference between the 9500000-1 and the 9500000 is the inlet/outlet port size and the corresponding flow capacity.

Key Features and Specifications:

• Filter Type: Spin-Down Sediment Filter.
• Inlet/Outlet Port Size: 1" slip (non-threaded) connections.
• Flow Capacity: 1 to 25 GPM (gallons per minute), depending on the specific mesh size of the screen installed.
• Maximum Pressure: 150 PSI at 73°F (23°C).
• Maximum Temperature: 100°F (40°C).
• Dimensions: Approximately 11-3/8" in length and 5" in width.
• Filter Screen: The system uses a cleanable and reusable screen, which can be made of either polyester or stainless steel, with various mesh sizes available (e.g., 60, 100, 140 mesh) to target specific particle sizes.
• Flushing System: Equipped with a manual ball valve at the bottom for easy flushing of accumulated debris without interrupting the water flow or disassembling the filter housing.
• Construction: Features a high-impact polymer resin clear cover (sump) that allows for visual monitoring of trapped sediment, and a molded non-corrosive head.
• Application: Ideal for residential well water systems, irrigation (drip and lawn sprinklers), and light commercial applications to protect downstream appliances and filtration systems.
